Condition Note: Minor cosmetic blemishes to enclosure and packaging.

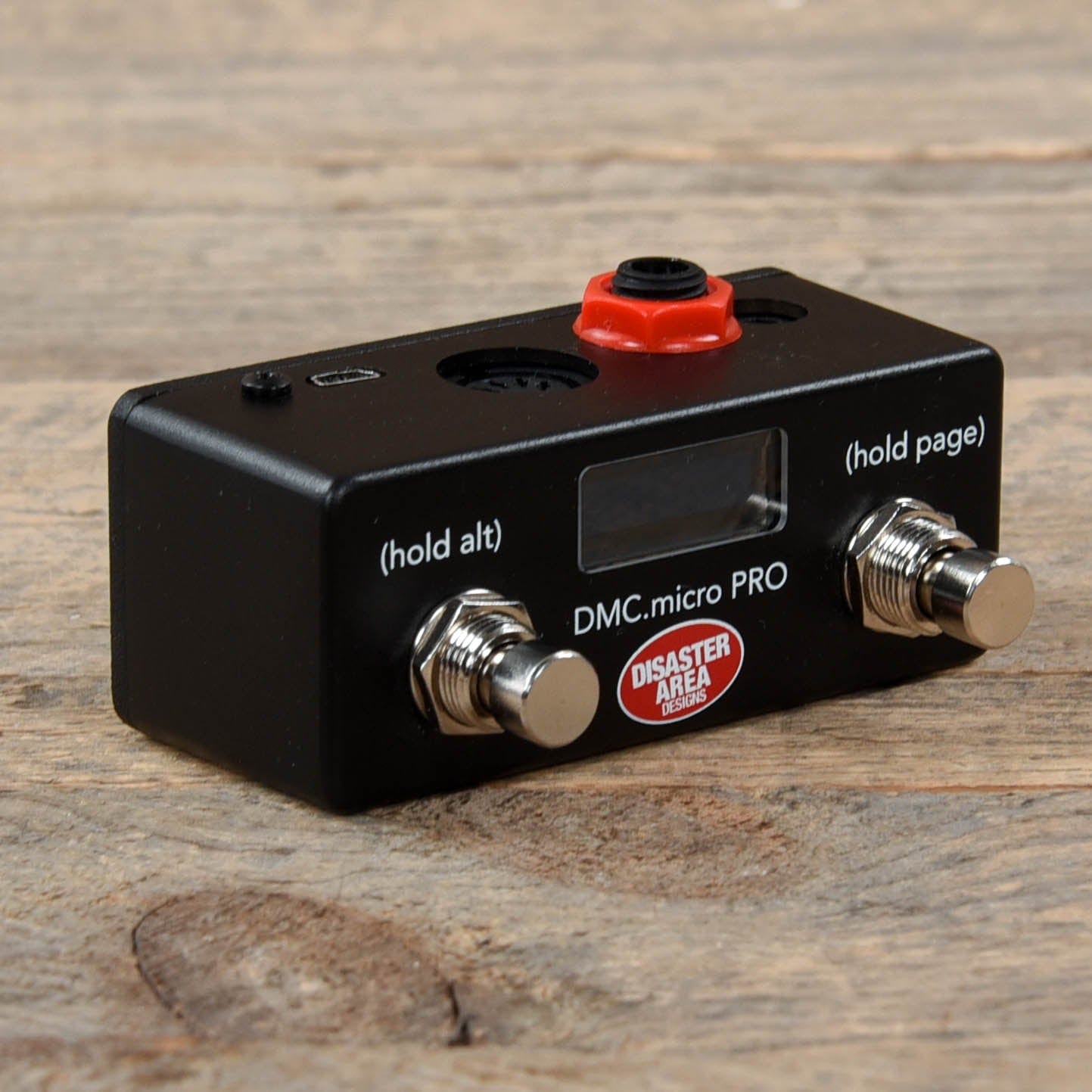

The DMC.micro PRO is an updated and improved version of our most popular controller, featuring full-sized performance but in a much smaller package.


• Graphical OLED display shows preset names, device status, clock rate, and more.
• One MultiJack connector can function as Expression Pedal input, Tap Tempo Output, Function Switch Output, Footswitch Input, or MIDI Output.
• Internal DIP switches to customize MultiJack functions.
• Up to 99 user-accessible presets (if preset page is active.)
• Controls up to four MIDI devices
• User-definable Utility Mode X page sends any MIDI CC command, MIDI notes, bank up and down, more.
• New Utility Mode Y page adds additional user-defined commands or use as looper control mode
• USB MIDI or USB Host connection for advanced control possibilities
• Runs on standard 9V power, 40mA or higher.

The DMC.micro PRO also features our astounding MultiJack connector, which can perform several different functions to simplify your setup!

• Connect one or two 1/4″ MIDI devices from companies such as Alexander Pedals, Chase Bliss Audio, Empress, and Meris
• Functions as a bi-directional MIDI port for supported devices, allows connections for Meris pedals to editing software.
• Connect an expression pedal to send MIDI messages to one or more of your devices, or user-define a custom MIDI CC expression command.
• Connect an external one- or two-button footswitch for tap tempo control, or user-define two custom actions.
• Send tap tempo to an external device such as a DD-7, Panther Cub, Flint, and more.

Specifications

• Size:  3.6″ x 1.5″ x 1.6″ (93 x 38 x 42mm.)
• 5-pin MIDI Port (supports MIDI input with MIDI-Y cable)
• MultiJack
• USB port
• Controls up to four MIDI devices
• Power:  9V DC, 40mA or greater, center negative
• Graphical OLED display
• Soft-touch footswitches
• Preset, device, looper, and UTIL modes
